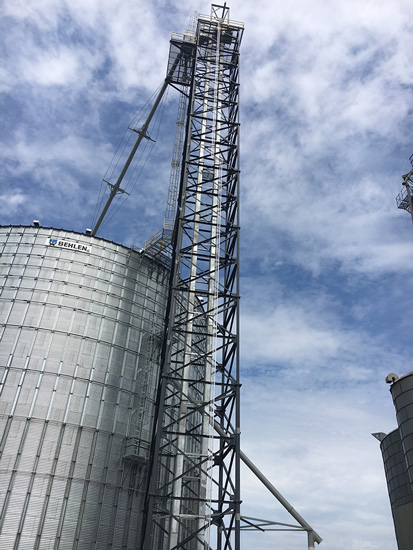

Bucket Elevator
Product Specs

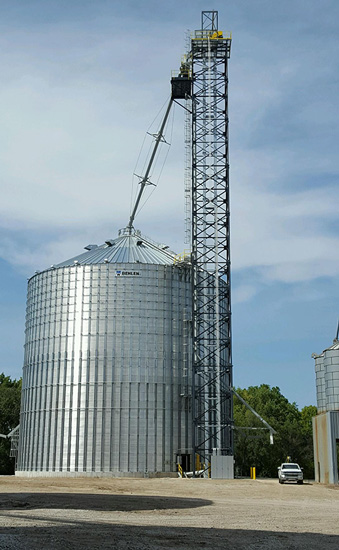

- Capacities up to 60,000 BPH
- Hot dipped galvanized construction of the boot, trunking and head
- Generous clearances in all directions
- Robust commercial design
- Custom configurations

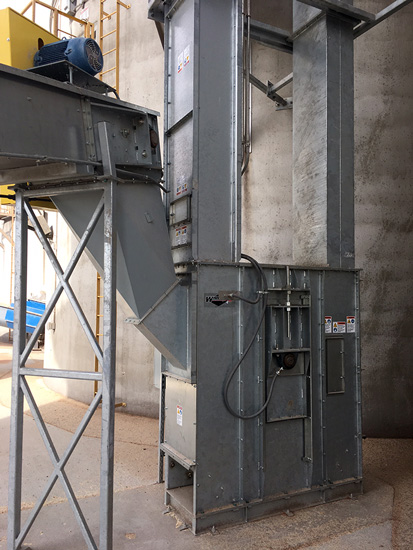

- 1/4" hot dipped galvanized boot

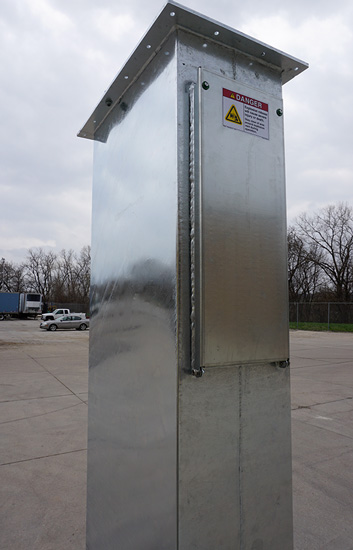

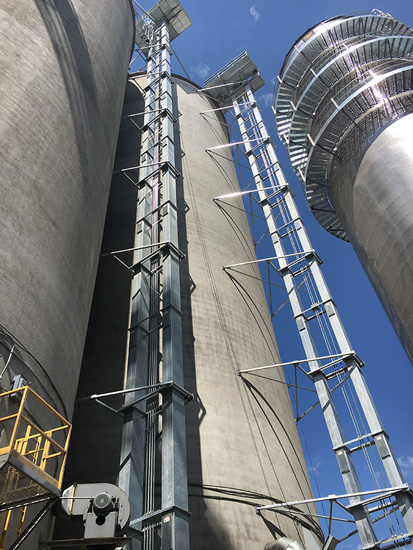

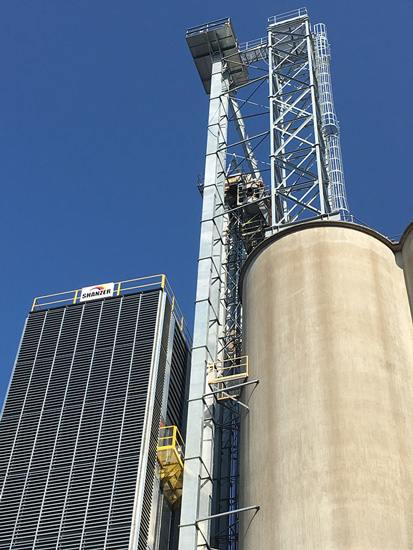

- Hot dipped galvanized trunk

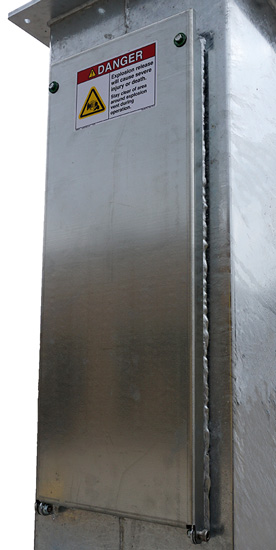

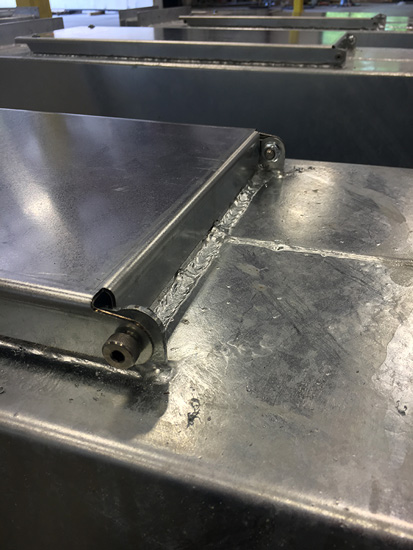

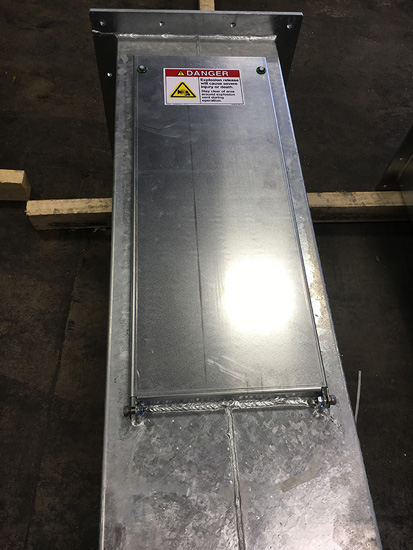

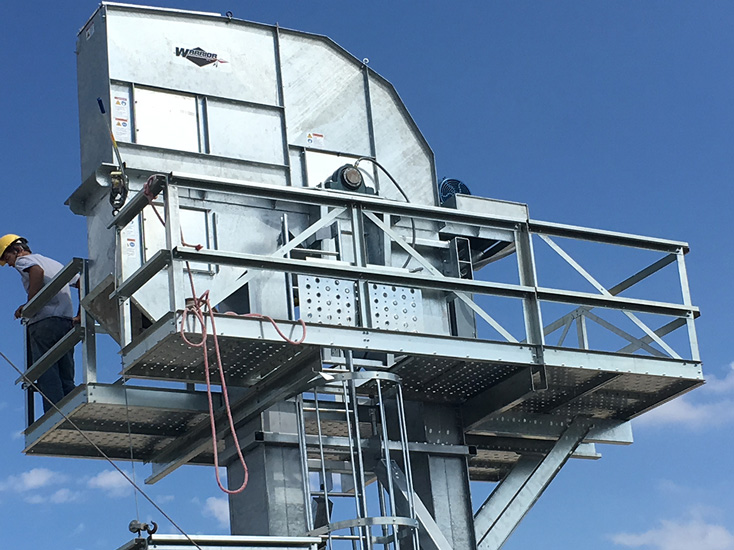

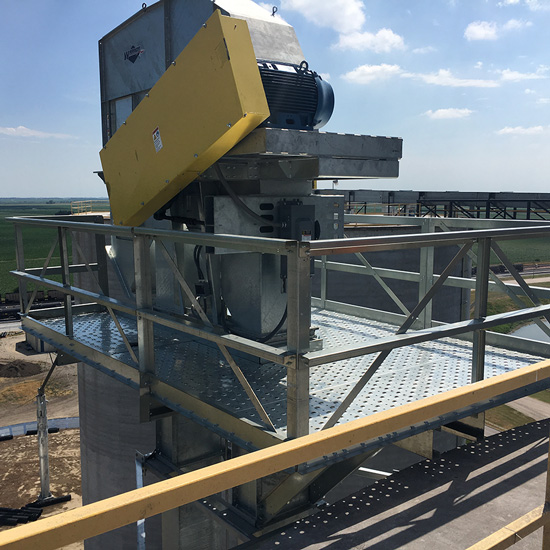

- NFPA compliant relief vents

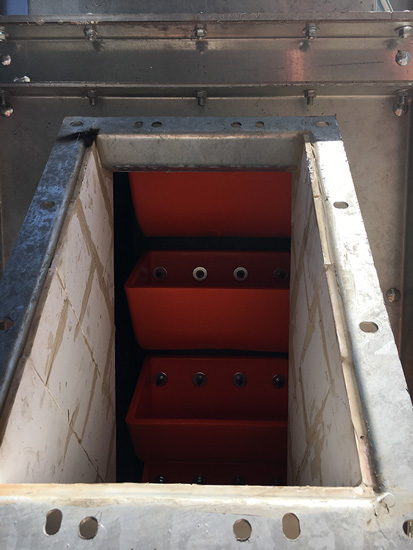

- Generous clearance in all directions
- 2 1/2" from edge of belt to inside of trunk
- 3" from lip of cup to inside of trunk
- 1 1/2" from back of belt to inside of trunk

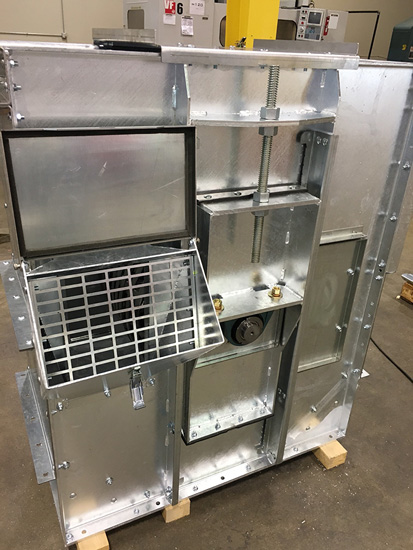

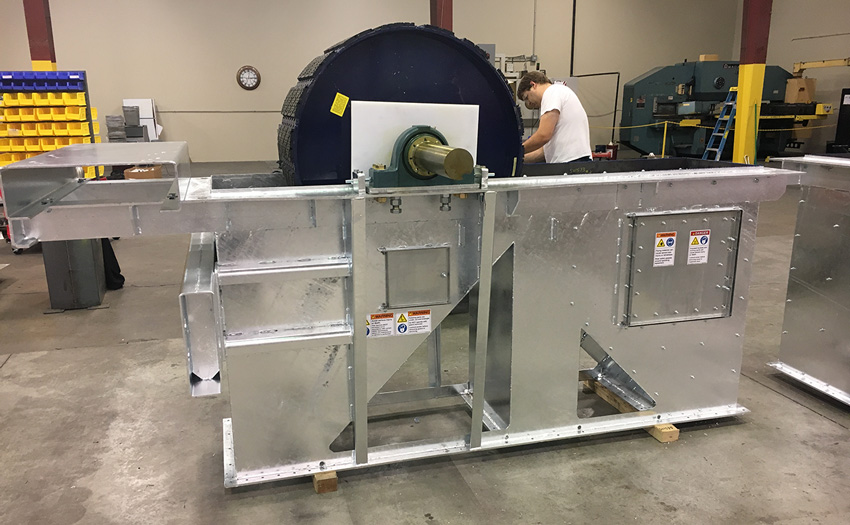

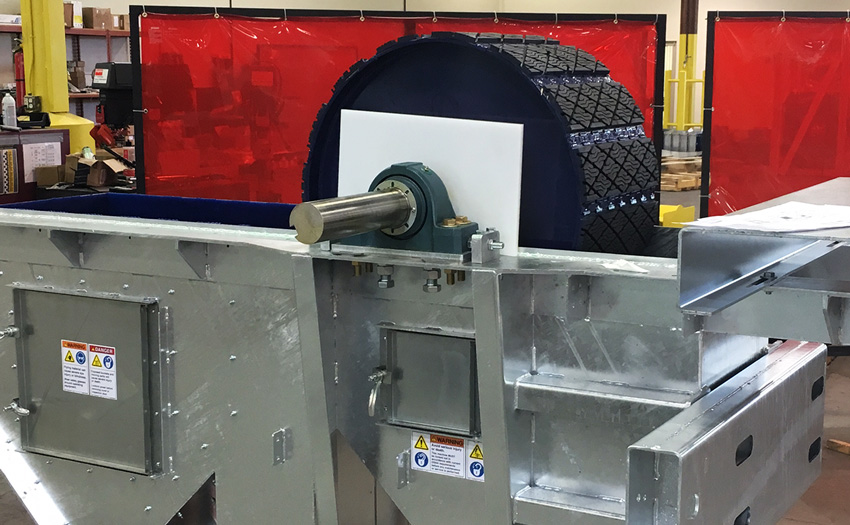

- 15" boot take-up minimum (ACME take up rods)
- Self fixturing design
- Pillow block bearings standard
- Boot shaft design to maximum of 5 minutes of deflection

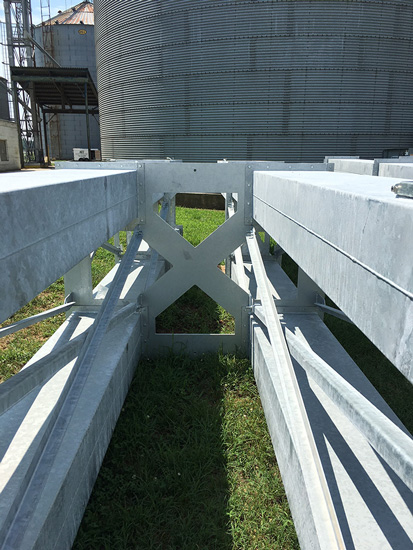

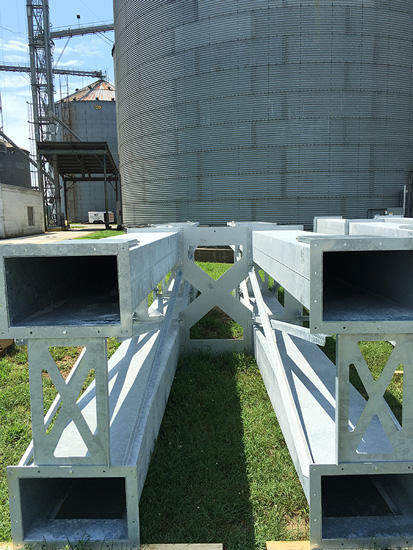

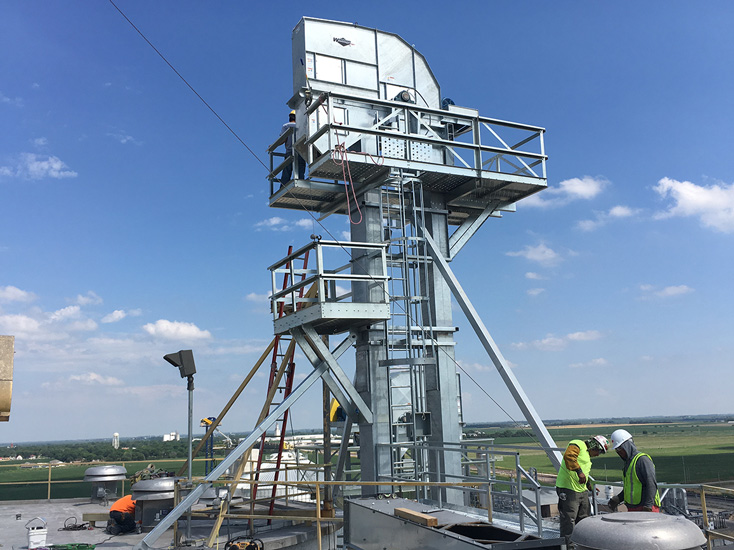

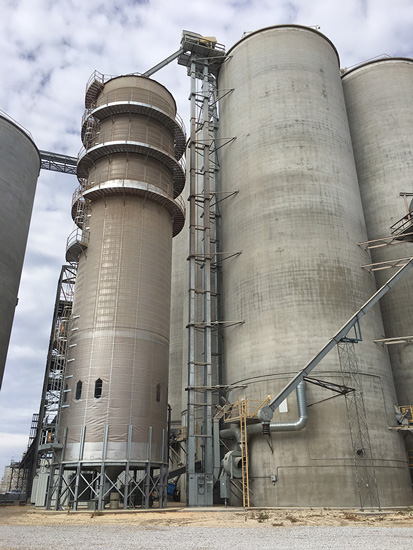

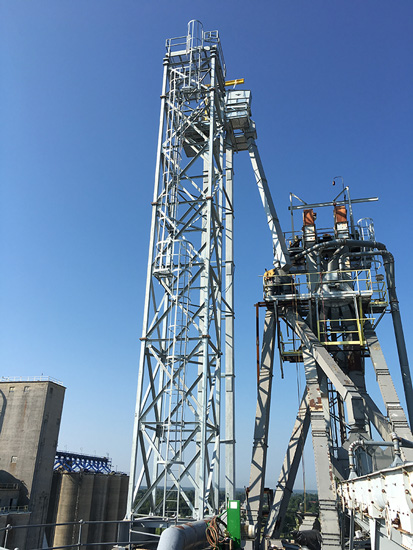

- Individual up and down trunks with robust tie angles and optional X bracing

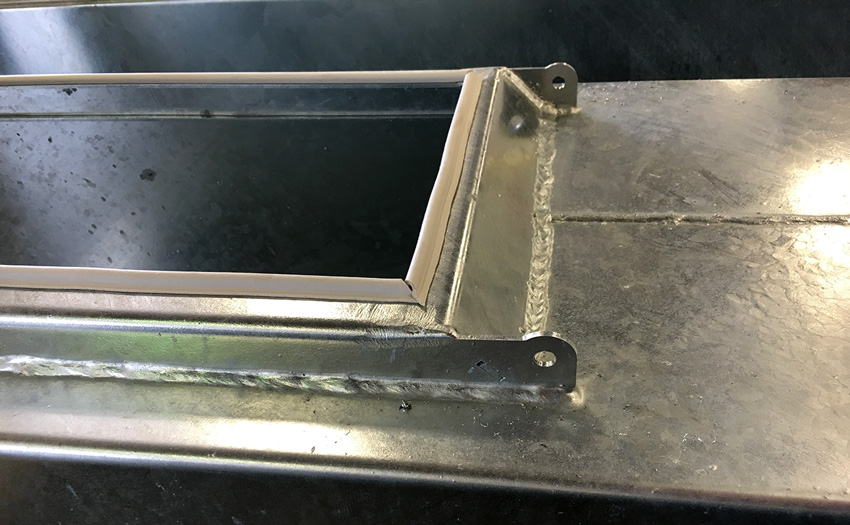

- Dust tight shaft seal design

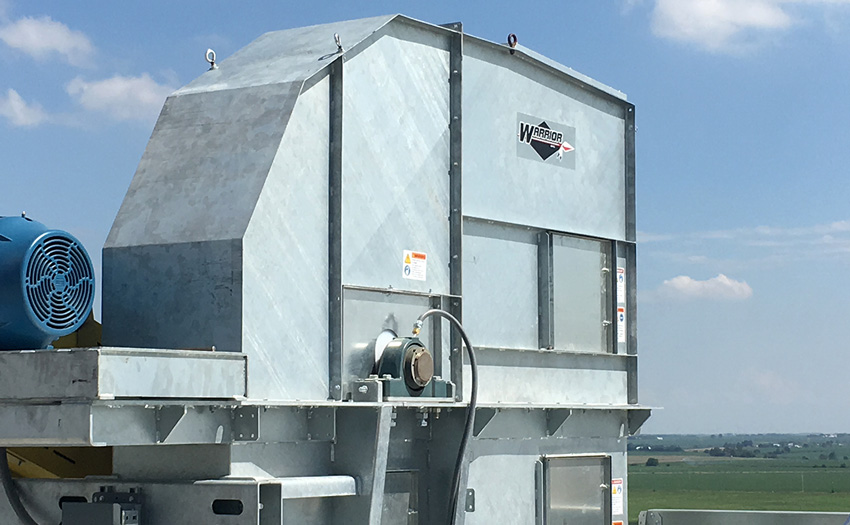

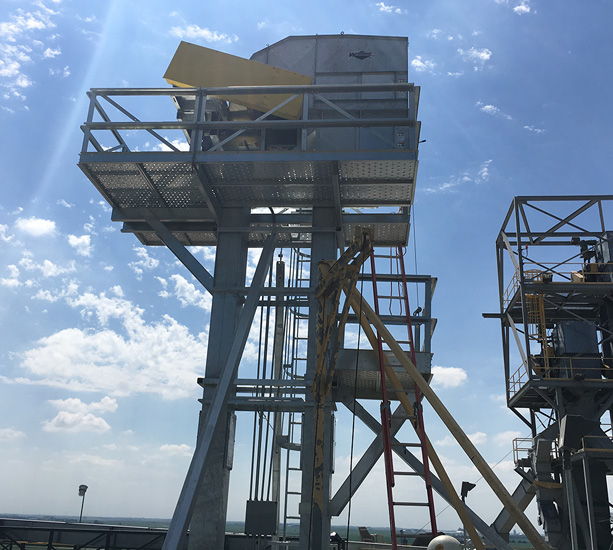

- Standard 1/4' urethane liner in head, hood, and hoppers

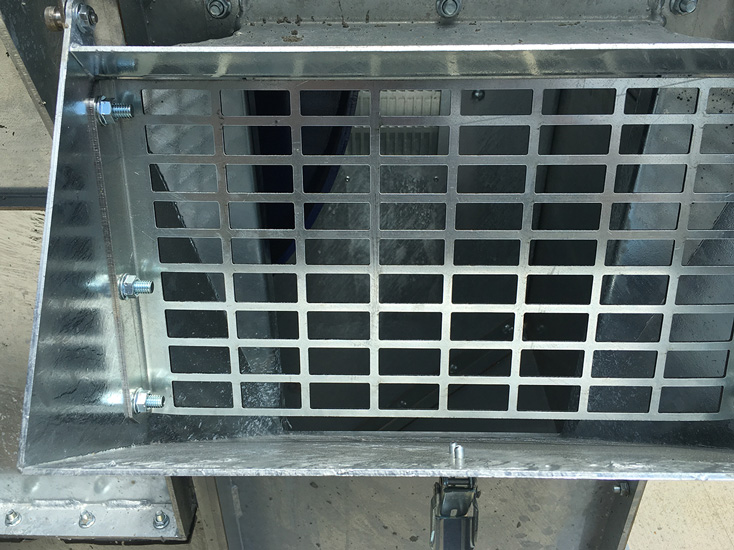

- 4-sided flanged inlet hopper
- Boot designed to minimize pressure issues
- Full range of available options
- Custom configurations available
Related Documents
- Bucket elevator brochure (PDF, 879.91 KB)
- Bucket Elevator Manual (PDF, 1.48 MB)
- Block - bucket elevator 2417 (CAD, 68.51 KB)
- Block - bucket elevator 2420 (CAD, 65.86 KB)
- Block - bucket elevator 3020 (CAD, 90.63 KB)
- Block - bucket elevator 3022 (CAD, 79.43 KB)
- Block - bucket elevator 3622 (CAD, 68.51 KB)
- Block - bucket elevator 3624 (CAD, 69.42 KB)
- Block - bucket elevator 4220 (CAD, 70.52 KB)
- Block - bucket elevator 4226 (CAD, 70.86 KB)
- Block - bucket elevator 4232 (CAD, 71.17 KB)
- Block - bucket elevator 4822 (CAD, 66.99 KB)
- Block - bucket elevator 4826 (CAD, 67.08 KB)
- Block - bucket elevator 4832 (CAD, 72.77 KB)
- Block - bucket elevator 4836 (CAD, 66.11 KB)
- Block - bucket elevator 4840 (CAD, 70.39 KB)
- Block - bucket elevator 4844 (CAD, 66.80 KB)
