En-Masse Conveyor
Product Specs
- Capacities up to 50,000 BPH
- Hot dipped galvanized construction
- Welded steel chain standard
- Robust commercial design
- Custom configurations

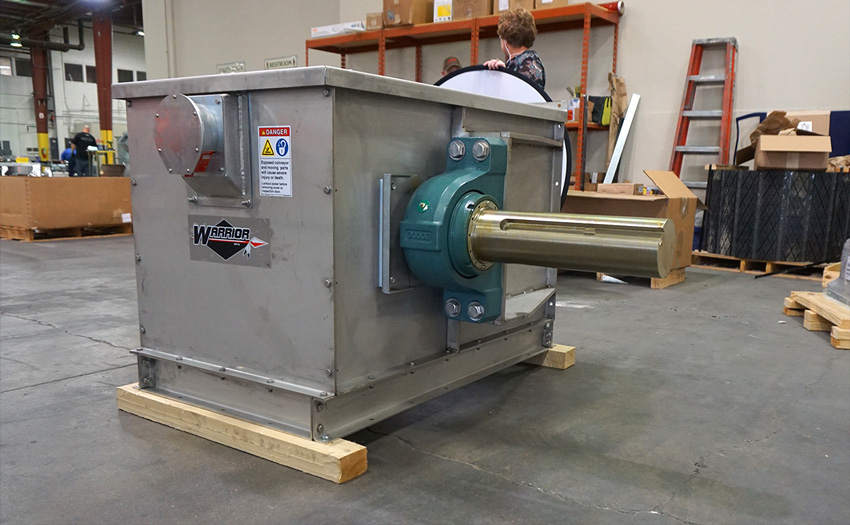

- 7 gauge head housing, hot dipped galvanized
- 10 gauge tail housing, hot dipped galvanized
- 10 gauge side panel construction standard

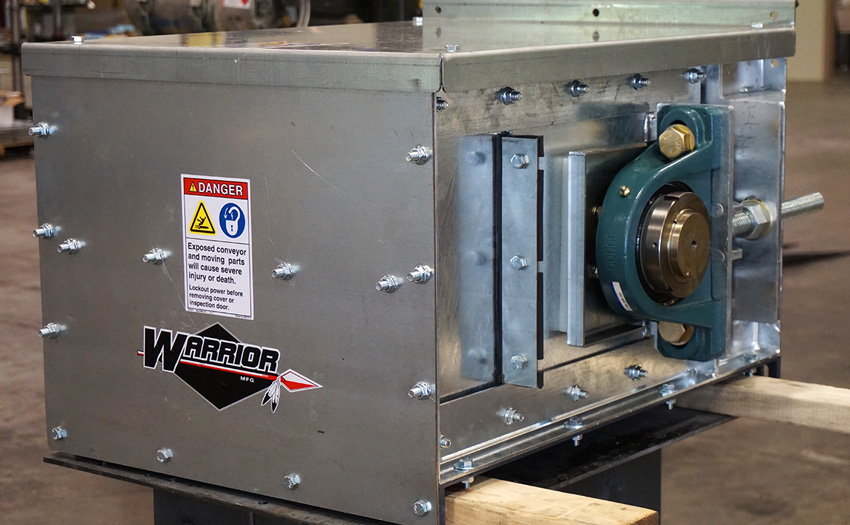

- Concentric locking pillow block bearings standard on head and tail

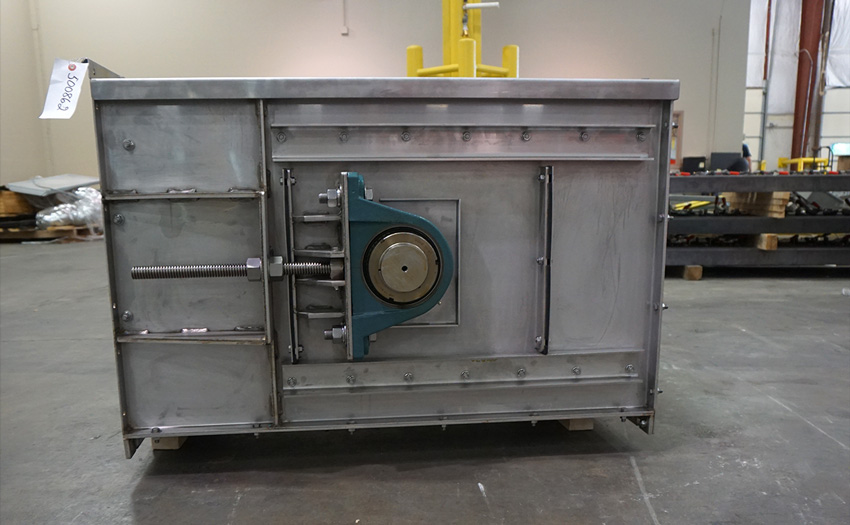

- Push take up frames standard
- Split sprockets standard
- Standard shaft guards, minor guarding available
- Choke switch at head discharge

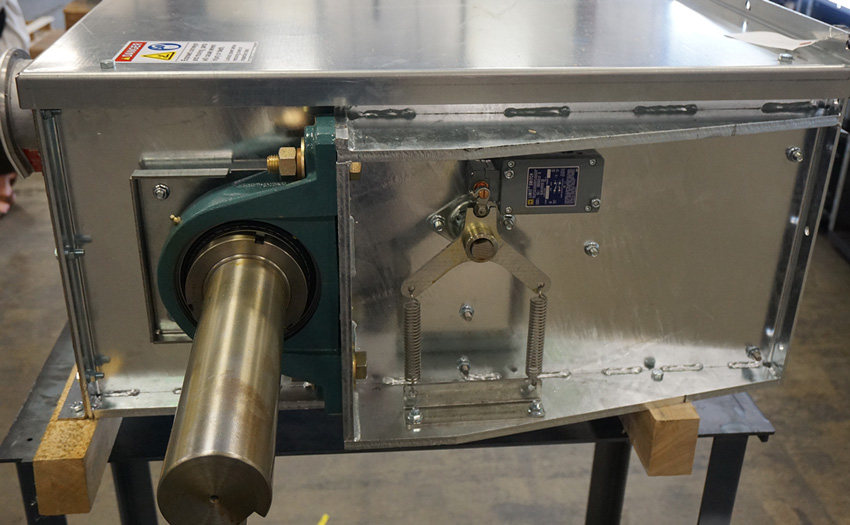

- Slack chain and chain break safety switch in head section
- Intermediate section lengths 10'-0", short sections in 1" increments
- Optional two-way or reversing

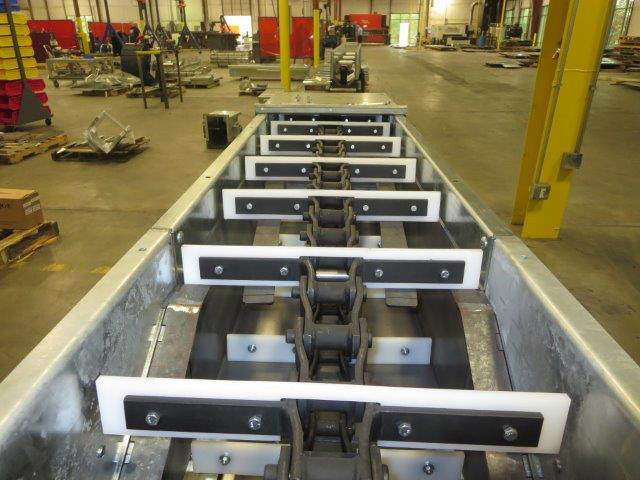

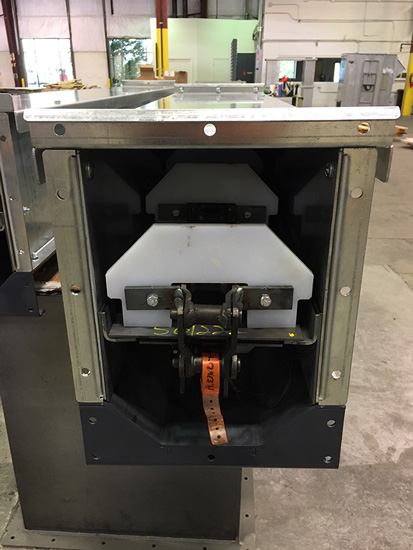

- UHMW flights. 3/8"-standard
- Flat or hip covers
- Roller, rail and pan chain return sections available

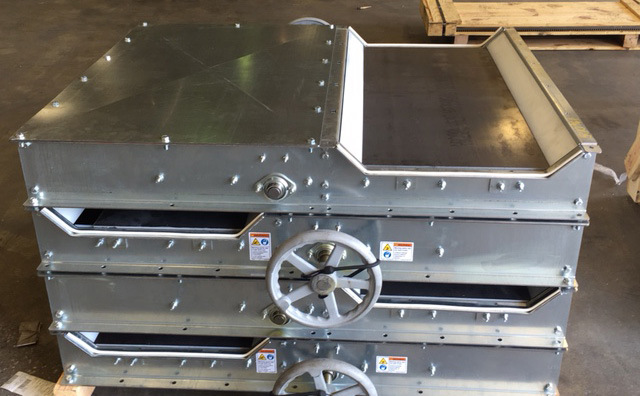

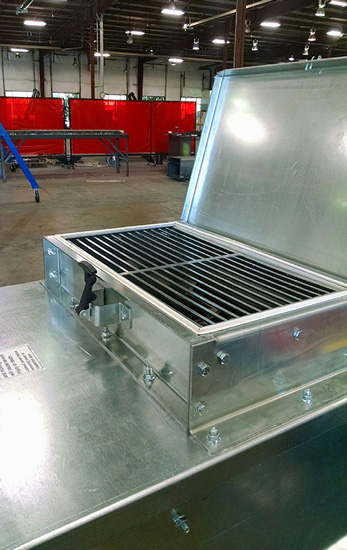

- Knees, bypass inlets, metering inlets, discharge gates and other options available
- All components pre-assembled prior to shipment, chain is installed in each section
- AR liners, 10 gauge, 3/16, 1/4, 3/8. No fasteners in product stream
- Hot dipped galvanized standard, painted, and stainless steel construction available
